vpkpp::PackFile Class Referenceabstract

#include <PackFile.h>

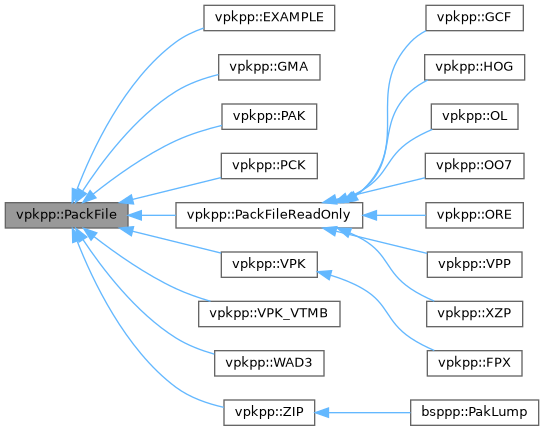

Inheritance diagram for vpkpp::PackFile:
Collaboration diagram for vpkpp::PackFile:

Public Types

template<typename R >
using EntryCallbackBase = std::function< R(const std::string &path, const Entry &entry)>
 Accepts the entry's path and metadata.

using EntryCallback = EntryCallbackBase< void >

using EntryPredicate = EntryCallbackBase< bool >

using EntryCreation = std::function< EntryOptions(const std::string &path)>

using EntryTrie = tsl::htrie_map< char, Entry >


Public Member Functions

 PackFile (const PackFile &other)=delete

PackFileoperator= (const PackFile &other)=delete

 PackFile (PackFile &&other) noexcept=default

PackFileoperator= (PackFile &&other) noexcept=default

virtual ~PackFile ()=default

virtual constexpr std::string_view getGUID () const =0
 Get the GUID corresponding to the pack file type.

template<typename T >
requires requires (const T&) {{T::GUID} -> std::convertible_to<std::string_view>;}
bool isInstanceOf () const
 Check if the pack file is an instance of the given pack file class.

virtual constexpr bool hasEntryChecksums () const
 Returns true if the format has a checksum for each entry.

virtual std::vector< std::string > verifyEntryChecksums () const
 Verify the checksums of each file, if a file fails the check its path will be added to the vector If there is no checksum ability in the format, it will return an empty vector.

virtual bool hasPackFileChecksum () const
 Returns true if the entire file has a checksum.

virtual bool verifyPackFileChecksum () const
 Verify the checksum of the entire file, returns true on success Will return true if there is no checksum ability in the format.

virtual bool hasPackFileSignature () const
 Returns true if the file is signed.

virtual bool verifyPackFileSignature () const
 Verify the file signature, returns true on success Will return true if there is no signature ability in the format.

virtual constexpr bool isCaseSensitive () const
 Does the format support case-sensitive file names?

bool hasEntry (const std::string &path, bool includeUnbaked=true) const
 Check if an entry exists given the file path.

std::optional< EntryfindEntry (const std::string &path_, bool includeUnbaked=true) const
 Try to find an entry given the file path.

virtual std::optional< std::vector< std::byte > > readEntry (const std::string &path_) const =0
 Try to read the entry's data to a bytebuffer.

std::optional< std::string > readEntryText (const std::string &path) const
 Try to read the entry's data to a string.

virtual constexpr bool isReadOnly () const noexcept

void addEntry (const std::string &entryPath, const std::string &filepath, EntryOptions options={})
 Add a new entry from a file path - the first parameter is the path in the PackFile, the second is the path on disk.

void addEntry (const std::string &path, std::vector< std::byte > &&buffer, EntryOptions options={})
 Add a new entry from a buffer.

void addEntry (const std::string &path, const std::byte *buffer, uint64_t bufferLen, EntryOptions options={})
 Add a new entry from a buffer.

void addDirectory (const std::string &entryBaseDir, const std::string &dir, EntryOptions options={})
 Adds new entries using the contents of a given directory.

void addDirectory (const std::string &entryBaseDir, const std::string &dir, const EntryCreation &creation)
 Adds new entries using the contents of a given directory.

virtual bool renameEntry (const std::string &oldPath_, const std::string &newPath_)
 Rename an existing entry.

virtual bool renameDirectory (const std::string &oldDir_, const std::string &newDir_)
 Rename an existing directory.

virtual bool removeEntry (const std::string &path_)
 Remove an entry.

virtual std::size_t removeDirectory (const std::string &dirName_)
 Remove a directory.

virtual bool bake (const std::string &outputDir_, BakeOptions options, const EntryCallback &callback)=0
 If output folder is an empty string, it will overwrite the original.

bool extractEntry (const std::string &entryPath, const std::string &filepath) const
 Extract the given entry to disk at the given file path.

bool extractDirectory (const std::string &dir_, const std::string &outputDir) const
 Extract the given directory to disk under the given output directory.

bool extractAll (const std::string &outputDir, bool createUnderPackFileDir=true) const
 Extract the contents of the pack file to disk at the given directory.

bool extractAll (const std::string &outputDir, const EntryPredicate &predicate, bool stripSharedDirs=true) const
 Extract the contents of the pack file to disk at the given directory - only entries which match the predicate are extracted.

const EntryTriegetBakedEntries () const
 Get entries saved to disk.

const EntryTriegetUnbakedEntries () const
 Get entries that have been added but not yet baked.

std::size_t getEntryCount (bool includeUnbaked=true) const
 Get the number of entries in the pack file.

void runForAllEntries (const EntryCallback &operation, bool includeUnbaked=true) const
 Run a callback for each entry in the pack file.

void runForAllEntries (const std::string &parentDir, const EntryCallback &operation, bool recursive=true, bool includeUnbaked=true) const
 Run a callback for each entry in the pack file under the parent directory.

std::string_view getFilepath () const
 /home/user/pak01_dir.vpk

std::string getTruncatedFilepath () const
 /home/user/pak01_dir.vpk -> /home/user/pak01

std::string getFilename () const
 /home/user/pak01_dir.vpk -> pak01_dir.vpk

std::string getTruncatedFilename () const
 /home/user/pak01_dir.vpk -> pak01.vpk

std::string getFilestem () const
 /home/user/pak01_dir.vpk -> pak01_dir

virtual std::string getTruncatedFilestem () const
 /home/user/pak01_dir.vpk -> pak01

virtual Attribute getSupportedEntryAttributes () const
 Returns a list of supported entry attributes Mostly for GUI programs that show entries and their metadata in a table ;)

virtual operator std::string () const


Static Public Member Functions

static std::unique_ptr< PackFileopen (const std::string &path, const EntryCallback &callback=nullptr)
 Open a generic pack file. The parser is selected based on the file extension.

static std::vector< std::string > getOpenableExtensions ()
 Returns a sorted list of supported extensions for opening, e.g. {".bsp", ".vpk"}.

static std::string escapeEntryPathForWrite (const std::string &path)
 On Windows, some characters and file names are invalid - this escapes the given entry path.


Protected Types

using OpenFactoryFunction = std::function< std::unique_ptr< PackFile >(const std::string &path, const EntryCallback &callback)>


Protected Member Functions

 PackFile (std::string fullFilePath_)

void runForAllEntriesInternal (const std::function< void(const std::string &, Entry &)> &operation, bool includeUnbaked=true)

void runForAllEntriesInternal (const std::string &parentDir, const std::function< void(const std::string &, Entry &)> &operation, bool recursive=true, bool includeUnbaked=true)

std::vector< std::string > verifyEntryChecksumsUsingCRC32 () const

virtual void addEntryInternal (Entry &entry, const std::string &path, std::vector< std::byte > &buffer, EntryOptions options)=0

std::string getBakeOutputDir (const std::string &outputDir) const

void mergeUnbakedEntries ()

void setFullFilePath (const std::string &outputDir)

std::string cleanEntryPath (const std::string &path) const


Static Protected Member Functions

static Entry createNewEntry ()

static std::optional< std::vector< std::byte > > readUnbakedEntry (const Entry &entry)

static std::unordered_map< std::string, std::vector< OpenFactoryFunction > > & getOpenExtensionRegistry ()

static const OpenFactoryFunctionregisterOpenExtensionForTypeFactory (std::string_view extension, const OpenFactoryFunction &factory)


Protected Attributes

std::string fullFilePath

EntryTrie entries

EntryTrie unbakedEntries


Detailed Description

Definition at line 25 of file PackFile.h.

Member Typedef Documentation

◆ EntryCallback

Definition at line 30 of file PackFile.h.

◆ EntryCallbackBase

template<typename R >
using vpkpp::PackFile::EntryCallbackBase = std::function<R(const std::string& path, const Entry& entry)>

Accepts the entry's path and metadata.

Definition at line 29 of file PackFile.h.

◆ EntryCreation

using vpkpp::PackFile::EntryCreation = std::function<EntryOptions(const std::string& path)>

Definition at line 34 of file PackFile.h.

◆ EntryPredicate

Definition at line 31 of file PackFile.h.

◆ EntryTrie

using vpkpp::PackFile::EntryTrie = tsl::htrie_map<char, Entry>

Definition at line 36 of file PackFile.h.

◆ OpenFactoryFunction

using vpkpp::PackFile::OpenFactoryFunction = std::function<std::unique_ptr<PackFile>(const std::string& path, const EntryCallback& callback)>
protected

Definition at line 213 of file PackFile.h.

Constructor & Destructor Documentation

◆ PackFile() [1/3]

vpkpp::PackFile::PackFile ( const PackFile other)
delete

◆ PackFile() [2/3]

vpkpp::PackFile::PackFile ( PackFile &&  other)
defaultnoexcept

◆ ~PackFile()

virtual vpkpp::PackFile::~PackFile ( )
virtualdefault

◆ PackFile() [3/3]

PackFile::PackFile ( std::string  fullFilePath_)
explicitprotected

Definition at line 109 of file PackFile.cpp.

Member Function Documentation

◆ addDirectory() [1/2]

void PackFile::addDirectory ( const std::string &  entryBaseDir,
const std::string &  dir,
const EntryCreation creation
)

Adds new entries using the contents of a given directory.

Definition at line 238 of file PackFile.cpp.

◆ addDirectory() [2/2]

void PackFile::addDirectory ( const std::string &  entryBaseDir,
const std::string &  dir,
EntryOptions  options = {}
)

Adds new entries using the contents of a given directory.

Definition at line 232 of file PackFile.cpp.

◆ addEntry() [1/3]

void PackFile::addEntry ( const std::string &  entryPath,
const std::string &  filepath,
EntryOptions  options = {}
)

Add a new entry from a file path - the first parameter is the path in the PackFile, the second is the path on disk.

Definition at line 190 of file PackFile.cpp.

◆ addEntry() [2/3]

void PackFile::addEntry ( const std::string &  path,
const std::byte *  buffer,
uint64_t  bufferLen,
EntryOptions  options = {}
)

Add a new entry from a buffer.

Definition at line 223 of file PackFile.cpp.

◆ addEntry() [3/3]

void PackFile::addEntry ( const std::string &  path,
std::vector< std::byte > &&  buffer,
EntryOptions  options = {}
)

Add a new entry from a buffer.

Definition at line 208 of file PackFile.cpp.

◆ addEntryInternal()

virtual void vpkpp::PackFile::addEntryInternal ( Entry entry,
const std::string &  path,
std::vector< std::byte > &  buffer,
EntryOptions  options
)
protectedpure virtual

◆ bake()

virtual bool vpkpp::PackFile::bake ( const std::string &  outputDir_,
BakeOptions  options,
const EntryCallback callback
)
pure virtual

If output folder is an empty string, it will overwrite the original.

Implemented in vpkpp::PackFileReadOnly, vpkpp::GMA, vpkpp::PAK, vpkpp::PCK, vpkpp::VPK, vpkpp::VPK_VTMB, vpkpp::WAD3, vpkpp::ZIP, vpkpp::EXAMPLE, and bsppp::PakLump.

◆ cleanEntryPath()

std::string PackFile::cleanEntryPath ( const std::string &  path) const
protected

Definition at line 677 of file PackFile.cpp.

◆ createNewEntry()

Entry PackFile::createNewEntry ( )
staticprotected

Definition at line 686 of file PackFile.cpp.

◆ escapeEntryPathForWrite()

std::string PackFile::escapeEntryPathForWrite ( const std::string &  path)
static

On Windows, some characters and file names are invalid - this escapes the given entry path.

Definition at line 616 of file PackFile.cpp.

◆ extractAll() [1/2]

bool PackFile::extractAll ( const std::string &  outputDir,
bool  createUnderPackFileDir = true
) const

Extract the contents of the pack file to disk at the given directory.

Definition at line 395 of file PackFile.cpp.

◆ extractAll() [2/2]

bool PackFile::extractAll ( const std::string &  outputDir,
const EntryPredicate predicate,
bool  stripSharedDirs = true
) const

Extract the contents of the pack file to disk at the given directory - only entries which match the predicate are extracted.

Definition at line 417 of file PackFile.cpp.

◆ extractDirectory()

bool PackFile::extractDirectory ( const std::string &  dir_,
const std::string &  outputDir
) const

Extract the given directory to disk under the given output directory.

Definition at line 370 of file PackFile.cpp.

◆ extractEntry()

bool PackFile::extractEntry ( const std::string &  entryPath,
const std::string &  filepath
) const

Extract the given entry to disk at the given file path.

Definition at line 351 of file PackFile.cpp.

◆ findEntry()

std::optional< Entry > PackFile::findEntry ( const std::string &  path_,
bool  includeUnbaked = true
) const

Try to find an entry given the file path.

Definition at line 163 of file PackFile.cpp.

◆ getBakedEntries()

const PackFile::EntryTrie & PackFile::getBakedEntries ( ) const

Get entries saved to disk.

Definition at line 482 of file PackFile.cpp.

◆ getBakeOutputDir()

std::string PackFile::getBakeOutputDir ( const std::string &  outputDir) const
protected

Definition at line 640 of file PackFile.cpp.

◆ getEntryCount()

std::size_t PackFile::getEntryCount ( bool  includeUnbaked = true) const

Get the number of entries in the pack file.

Definition at line 490 of file PackFile.cpp.

◆ getFilename()

std::string PackFile::getFilename ( ) const

/home/user/pak01_dir.vpk -> pak01_dir.vpk

Definition at line 591 of file PackFile.cpp.

◆ getFilepath()

std::string_view PackFile::getFilepath ( ) const

/home/user/pak01_dir.vpk

Definition at line 583 of file PackFile.cpp.

◆ getFilestem()

std::string PackFile::getFilestem ( ) const

/home/user/pak01_dir.vpk -> pak01_dir

Definition at line 600 of file PackFile.cpp.

◆ getGUID()

virtual constexpr std::string_view vpkpp::PackFile::getGUID ( ) const
constexprpure virtual

◆ getOpenableExtensions()

std::vector< std::string > PackFile::getOpenableExtensions ( )
static

Returns a sorted list of supported extensions for opening, e.g. {".bsp", ".vpk"}.

Definition at line 128 of file PackFile.cpp.

◆ getOpenExtensionRegistry()

std::unordered_map< std::string, std::vector< PackFile::OpenFactoryFunction > > & PackFile::getOpenExtensionRegistry ( )
staticprotected

Definition at line 705 of file PackFile.cpp.

◆ getSupportedEntryAttributes()

Attribute PackFile::getSupportedEntryAttributes ( ) const
virtual

Returns a list of supported entry attributes Mostly for GUI programs that show entries and their metadata in a table ;)

Reimplemented in vpkpp::GCF, vpkpp::GMA, vpkpp::HOG, vpkpp::OL, vpkpp::OO7, vpkpp::ORE, vpkpp::PAK, vpkpp::PCK, vpkpp::VPK, vpkpp::VPK_VTMB, vpkpp::VPP, vpkpp::WAD3, vpkpp::XZP, vpkpp::ZIP, and vpkpp::EXAMPLE.

Definition at line 608 of file PackFile.cpp.

◆ getTruncatedFilename()

std::string PackFile::getTruncatedFilename ( ) const

/home/user/pak01_dir.vpk -> pak01.vpk

Definition at line 595 of file PackFile.cpp.

◆ getTruncatedFilepath()

std::string PackFile::getTruncatedFilepath ( ) const

/home/user/pak01_dir.vpk -> /home/user/pak01

Definition at line 587 of file PackFile.cpp.

◆ getTruncatedFilestem()

std::string PackFile::getTruncatedFilestem ( ) const
virtual

/home/user/pak01_dir.vpk -> pak01

Reimplemented in vpkpp::VPK, and vpkpp::VPK_VTMB.

Definition at line 604 of file PackFile.cpp.

◆ getUnbakedEntries()

const PackFile::EntryTrie & PackFile::getUnbakedEntries ( ) const

Get entries that have been added but not yet baked.

Definition at line 486 of file PackFile.cpp.

◆ hasEntry()

bool PackFile::hasEntry ( const std::string &  path,
bool  includeUnbaked = true
) const

Check if an entry exists given the file path.

Definition at line 159 of file PackFile.cpp.

◆ hasEntryChecksums()

virtual constexpr bool vpkpp::PackFile::hasEntryChecksums ( ) const
inlineconstexprvirtual

Returns true if the format has a checksum for each entry.

Reimplemented in vpkpp::GCF, vpkpp::GMA, vpkpp::VPK, and vpkpp::ZIP.

Definition at line 63 of file PackFile.h.

◆ hasPackFileChecksum()

bool PackFile::hasPackFileChecksum ( ) const
virtual

Returns true if the entire file has a checksum.

Reimplemented in vpkpp::GMA, vpkpp::OO7, and vpkpp::VPK.

Definition at line 143 of file PackFile.cpp.

◆ hasPackFileSignature()

bool PackFile::hasPackFileSignature ( ) const
virtual

Returns true if the file is signed.

Reimplemented in vpkpp::VPK.

Definition at line 151 of file PackFile.cpp.

◆ isCaseSensitive()

virtual constexpr bool vpkpp::PackFile::isCaseSensitive ( ) const
inlineconstexprvirtual

Does the format support case-sensitive file names?

Reimplemented in bsppp::PakLump, vpkpp::EXAMPLE, vpkpp::GCF, vpkpp::OL, vpkpp::OO7, vpkpp::PCK, and vpkpp::ZIP.

Definition at line 86 of file PackFile.h.

◆ isInstanceOf()

template<typename T >
requires requires (const T&) {{T::GUID} -> std::convertible_to<std::string_view>;}
bool vpkpp::PackFile::isInstanceOf ( ) const
inline

Check if the pack file is an instance of the given pack file class.

Definition at line 58 of file PackFile.h.

◆ isReadOnly()

virtual constexpr bool vpkpp::PackFile::isReadOnly ( ) const
inlineconstexprvirtualnoexcept

Reimplemented in vpkpp::PackFileReadOnly.

Definition at line 102 of file PackFile.h.

◆ mergeUnbakedEntries()

void PackFile::mergeUnbakedEntries ( )
protected

Definition at line 656 of file PackFile.cpp.

◆ open()

std::unique_ptr< PackFile > PackFile::open ( const std::string &  path,
const EntryCallback callback = nullptr
)
static

Open a generic pack file. The parser is selected based on the file extension.

Definition at line 114 of file PackFile.cpp.

◆ operator std::string()

PackFile::operator std::string ( ) const
explicitvirtual

◆ operator=() [1/2]

PackFile & vpkpp::PackFile::operator= ( const PackFile other)
delete

◆ operator=() [2/2]

PackFile & vpkpp::PackFile::operator= ( PackFile &&  other)
defaultnoexcept

◆ readEntry()

virtual std::optional< std::vector< std::byte > > vpkpp::PackFile::readEntry ( const std::string &  path_) const
pure virtual

◆ readEntryText()

std::optional< std::string > PackFile::readEntryText ( const std::string &  path) const

Try to read the entry's data to a string.

Definition at line 176 of file PackFile.cpp.

◆ readUnbakedEntry()

std::optional< std::vector< std::byte > > PackFile::readUnbakedEntry ( const Entry entry)
staticprotected

Definition at line 690 of file PackFile.cpp.

◆ registerOpenExtensionForTypeFactory()

const PackFile::OpenFactoryFunction & PackFile::registerOpenExtensionForTypeFactory ( std::string_view  extension,
const OpenFactoryFunction factory
)
staticprotected

Definition at line 710 of file PackFile.cpp.

◆ removeDirectory()

std::size_t PackFile::removeDirectory ( const std::string &  dirName_)
virtual

Remove a directory.

Reimplemented in vpkpp::VPK.

Definition at line 333 of file PackFile.cpp.

◆ removeEntry()

bool PackFile::removeEntry ( const std::string &  path_)
virtual

Remove an entry.

Reimplemented in vpkpp::VPK.

Definition at line 316 of file PackFile.cpp.

◆ renameDirectory()

bool PackFile::renameDirectory ( const std::string &  oldDir_,
const std::string &  newDir_
)
virtual

Rename an existing directory.

Definition at line 287 of file PackFile.cpp.

◆ renameEntry()

bool PackFile::renameEntry ( const std::string &  oldPath_,
const std::string &  newPath_
)
virtual

Rename an existing entry.

Definition at line 268 of file PackFile.cpp.

◆ runForAllEntries() [1/2]

void PackFile::runForAllEntries ( const EntryCallback operation,
bool  includeUnbaked = true
) const

Run a callback for each entry in the pack file.

Definition at line 499 of file PackFile.cpp.

◆ runForAllEntries() [2/2]

void PackFile::runForAllEntries ( const std::string &  parentDir,
const EntryCallback operation,
bool  recursive = true,
bool  includeUnbaked = true
) const

Run a callback for each entry in the pack file under the parent directory.

Definition at line 513 of file PackFile.cpp.

◆ runForAllEntriesInternal() [1/2]

void PackFile::runForAllEntriesInternal ( const std::function< void(const std::string &, Entry &)> &  operation,
bool  includeUnbaked = true
)
protected

Definition at line 541 of file PackFile.cpp.

◆ runForAllEntriesInternal() [2/2]

void PackFile::runForAllEntriesInternal ( const std::string &  parentDir,
const std::function< void(const std::string &, Entry &)> &  operation,
bool  recursive = true,
bool  includeUnbaked = true
)
protected

Definition at line 555 of file PackFile.cpp.

◆ setFullFilePath()

void PackFile::setFullFilePath ( const std::string &  outputDir)
protected

Definition at line 672 of file PackFile.cpp.

◆ verifyEntryChecksums()

std::vector< std::string > PackFile::verifyEntryChecksums ( ) const
virtual

Verify the checksums of each file, if a file fails the check its path will be added to the vector If there is no checksum ability in the format, it will return an empty vector.

Reimplemented in vpkpp::GCF, vpkpp::GMA, vpkpp::VPK, and vpkpp::ZIP.

Definition at line 139 of file PackFile.cpp.

◆ verifyEntryChecksumsUsingCRC32()

std::vector< std::string > PackFile::verifyEntryChecksumsUsingCRC32 ( ) const
protected

Definition at line 626 of file PackFile.cpp.

◆ verifyPackFileChecksum()

bool PackFile::verifyPackFileChecksum ( ) const
virtual

Verify the checksum of the entire file, returns true on success Will return true if there is no checksum ability in the format.

Reimplemented in vpkpp::GMA, vpkpp::OO7, and vpkpp::VPK.

Definition at line 147 of file PackFile.cpp.

◆ verifyPackFileSignature()

bool PackFile::verifyPackFileSignature ( ) const
virtual

Verify the file signature, returns true on success Will return true if there is no signature ability in the format.

Reimplemented in vpkpp::VPK.

Definition at line 155 of file PackFile.cpp.

Member Data Documentation

◆ entries

EntryTrie vpkpp::PackFile::entries
protected

Definition at line 220 of file PackFile.h.

◆ fullFilePath

std::string vpkpp::PackFile::fullFilePath
protected

Definition at line 219 of file PackFile.h.

◆ unbakedEntries

EntryTrie vpkpp::PackFile::unbakedEntries
protected

Definition at line 221 of file PackFile.h.


The documentation for this class was generated from the following files:
