vpkpp::Entry Class Reference

This class represents the metadata that a file has inside a PackFile. More...

#include <Entry.h>

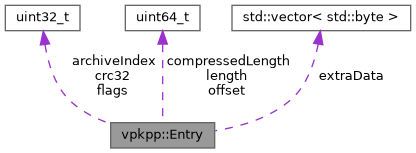

Collaboration diagram for vpkpp::Entry:

Public Attributes
uint32_t	flags = 0
	Format-specific flags (PCK: File flags, VPK: Internal parser state, ZIP: Compression method / strength)
uint32_t	archiveIndex = 0
	Which external archive this entry is in.
uint64_t	length = 0
	Length in bytes (in formats with compression, this is the uncompressed length)
uint64_t	compressedLength = 0
	If the format supports compression, this is the compressed length.
uint64_t	offset = 0
	Offset, format-specific meaning - 0 if unused, or if the offset genuinely is 0.
std::vector< std::byte >	extraData
	Format-specific (PCK: MD5 hash, VPK: Preloaded data)
uint32_t	crc32 = 0
	CRC32 checksum - 0 if unused.
bool	unbaked = false
	Used to check if entry is saved to disk.

Friends
class	PackFile

Detailed Description

This class represents the metadata that a file has inside a PackFile.

It is used to access the file's data and read its properties

Definition at line 14 of file Entry.h.

Friends And Related Function Documentation

PackFile

friend class PackFile

friend

Definition at line 15 of file Entry.h.

Member Data Documentation

archiveIndex

uint32_t vpkpp::Entry::archiveIndex = 0

Which external archive this entry is in.

If this file format does not support external archives, this will always be 0

Definition at line 23 of file Entry.h.

compressedLength

uint64_t vpkpp::Entry::compressedLength = 0

If the format supports compression, this is the compressed length.

If compression is not supported or unused, this will remain 0

Definition at line 30 of file Entry.h.

crc32

uint32_t vpkpp::Entry::crc32 = 0

CRC32 checksum - 0 if unused.

Note that for GCF, this is actually an index into a checksum array and NOT a checksum

Definition at line 40 of file Entry.h.

extraData

std::vector<std::byte> vpkpp::Entry::extraData

Format-specific (PCK: MD5 hash, VPK: Preloaded data)

Definition at line 36 of file Entry.h.

flags

uint32_t vpkpp::Entry::flags = 0

Format-specific flags (PCK: File flags, VPK: Internal parser state, ZIP: Compression method / strength)

Definition at line 19 of file Entry.h.

length

uint64_t vpkpp::Entry::length = 0

Length in bytes (in formats with compression, this is the uncompressed length)

Definition at line 26 of file Entry.h.

offset

uint64_t vpkpp::Entry::offset = 0

Offset, format-specific meaning - 0 if unused, or if the offset genuinely is 0.

Definition at line 33 of file Entry.h.

unbaked

bool vpkpp::Entry::unbaked = false

Used to check if entry is saved to disk.

Definition at line 43 of file Entry.h.

---

The documentation for this class was generated from the following file:

• include/vpkpp/Entry.h
