Inheritance diagram for chira::MeshDataBuilder:

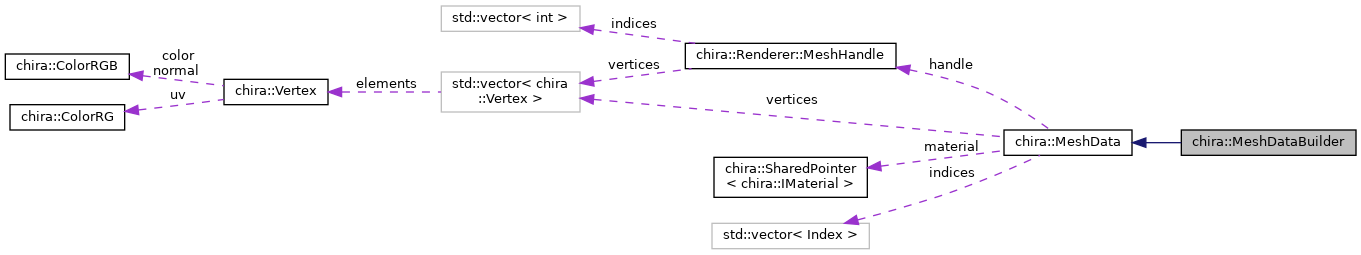

Collaboration diagram for chira::MeshDataBuilder:

[legend]

Public Member Functions
void	addTriangle (Vertex v1, Vertex v2, Vertex v3, bool addDuplicate=false)

void	addSquare (Vertex v1, Vertex v2, Vertex v3, Vertex v4, bool addDuplicate=false)
	Vertex v4 forms a face with vertex v1 and v3.

void	addSquare (Vertex center, glm::vec2 size, SignedAxis normal, float offset=0, bool addDuplicate=false)

void	addCube (Vertex center, glm::vec3 size, bool visibleOutside=true, bool addDuplicate=false)

void	update ()

void	clear ()
	Does not call update().

Public Member Functions inherited from chira::MeshData
void	render (glm::mat4 model, MeshCullType cullType=MeshCullType::BACK)

SharedPointer< IMaterial >	getMaterial () const

void	setMaterial (SharedPointer< IMaterial > newMaterial)

MeshDepthFunction	getDepthFunction () const

void	setDepthFunction (MeshDepthFunction function)

std::vector< byte >	getMeshData (const std::string &meshLoader) const

void	appendMeshData (const std::string &loader, const std::string &identifier)

Protected Member Functions
void	addVertex (Vertex vertex, bool addDuplicate=false)
	Pass true to addDuplicate if you don't want to scan the entire vertex vector to calculate the index. More...

Protected Member Functions inherited from chira::MeshData
void	setupForRendering ()
	Establishes the vertex buffers and copies the current mesh data into them.

void	updateMeshData ()
	Updates the vertex buffers with the current mesh data.

void	clearMeshData ()
	Does not call updateMeshData().

Protected Attributes
Index	currentIndex = 0

Protected Attributes inherited from chira::MeshData
bool	initialized = false

Renderer::MeshHandle	handle {}

MeshDrawMode	drawMode = MeshDrawMode::STATIC

MeshDepthFunction	depthFunction = MeshDepthFunction::LEQUAL

SharedPointer< IMaterial >	material

std::vector< Vertex >	vertices

std::vector< Index >	indices

Detailed Description

Definition at line 8 of file MeshDataBuilder.h.

Member Function Documentation

void MeshDataBuilder::addVertex	(	Vertex	vertex,
		bool	addDuplicate = `false`
	)

protected

Pass true to addDuplicate if you don't want to scan the entire vertex vector to calculate the index.

This will make a duplicate vertex if one already exists.

Definition at line 11 of file MeshDataBuilder.cpp.

The documentation for this class was generated from the following files:
